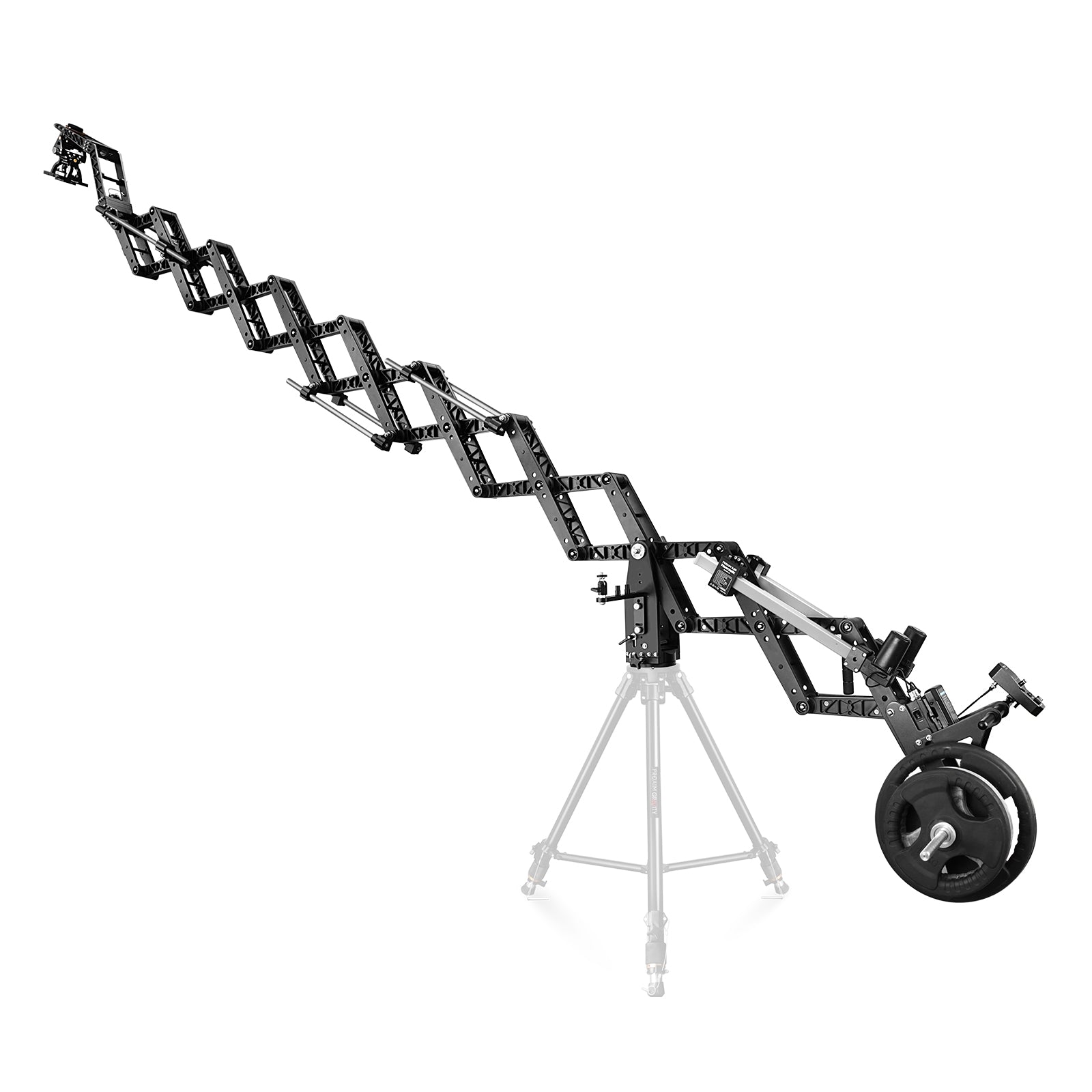

An Advanced, Retractable Jib Crane for Precisely Controlled Camera Moves!
- Construction: High-grade CNC Aluminum
- Total number of High-Speed Steel Bearing: 70
- Total Length Extended: 17ft / 5.2m
- Total Length Closed: 3.3ft
- Extended Height from Ground: 17.4ft / 5.3m
- Closed Height from Ground: 6.3ft
- Load Capacity: 15kg / 33lb
- Crane Pan and Tilt lock: Yes
- Self balance weight (Extended/Collapsed): 15kg / 33lb
- Battery Runtime: 1 ½ – 2 hours
- Weight of Scissor Jib: 33kg / 73lb
Motor Specifications
- IP44 Protection: Certified
- Rated Voltage: 12V -15V DC
- Rated Power: 60W
- Nominal Current: 10A DC
- Maximum Thrust Force: 1000N
- Maximum Pulling Force: 1000N
- Travelling speed: 36mm/sec
- Noise: <55dB
- Vibration: Not Noticeable
Jib Packing Info
- Product weight with flight case: 71kg / 157lb
- Flight case dimensions (LXWXH): 85cm x 40cm x 80cm
Tripod Stand (TP-GVTY-01) Specifications
- Weight Capacity: (i) On Minimum Height 250kg / 550lb, (ii) On Maximum Height 180kg / 396lb
- Height: (i) Maximum Height: 120cm, (ii) Minimum Height: 82cm
- Pipe dia: 42mm
- Micro Adjustment: Yes
- Folded Dimensions: 94cm
- Weight of Stand: 12kg / 26lb
Anchor Dolly (DL-ANCR-02) Specifications
- Folded Length: 23.5″
- Wheel Diameter: 6″
- Load Capacity: 500kg / 1100lb
- Wheel Lock: Yes
- Product Weight: 12kg / 26.45lb
In the Box
- 17ft Powermatic Scissor Jib
- Jib Controller & Monitor Bracket
- Ronin Controller Bracket
- Female to Female Connector
- 2 x Weight Ends
- 15V AC Adapter
- Weight Rod & Cable Guide Rods
- HDMI Male to Male W
